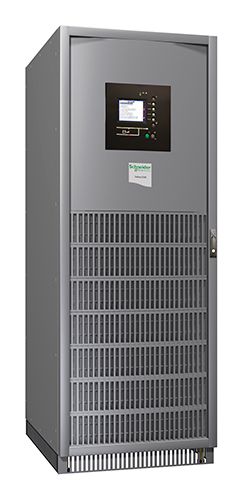

APC 100KVA | Galaxy Parallel 5500 3 Phase Smart UPS (G55TUPSM100HS)
Original price was: KSh2,800,000.00.KSh2,798,000.00Current price is: KSh2,798,000.00.
APC 100KVA | Galaxy Parallel 5500 3 Phase Smart UPS (G55TUPSM100HS)
APC 100KVA Galaxy Parallel 5500 3 Phase Smart UPS G55TUPSM100HS from the leading apc dealer in Nairobi Kenya, buy online APC 100KVA Galaxy Parallel 5500 3 Phase Smart UPS G55TUPSM100HS and have it delivered.
Out of stock
APC 100KVA | Galaxy Parallel 5500 3 Phase Smart UPS (G55TUPSM100HS)
| PROVIDED EQUIPMENT | Installation guide Network management card Start-up service User manual | |
|---|---|---|
| BYPASS VOLTAGE TOLERANCE | +/- 10 % settable from +/- 4/6/8 and 10 % | |
| MAX BYPASS INPUT CURRENT | 144 A | |
| NUMBER OF TARE POWER | 2 W | |
| NUMBER OF POWER MODULE FREE SLOTS | 0 | |
| NUMBER OF POWER MODULE FILLED SLOTS | 0 | |
| REDUNDANT | No | |
| UPS SIZE | WS |
| DEPTH | 85 cm | |
|---|---|---|
| HEIGHT | 190 cm | |
| MOUNTING PREFERENCE | No preference | |
| NET WEIGHT | 520 kg | |
| MOUNTING MODE | Not rack-mountable | |
| TWO POST MOUNTABLE | 0 | |
| USB COMPATIBLE | No | |
| WIDTH | 71.2 cm |
| NETWORK FREQUENCY | 45…65 Hz | |
|---|---|---|
| NUMBER OF INPUT CONNECTORS | 1 hard wire 4-wire (3P + E) 1 hard wire 4-wire (3P + N) | |
| INPUT VOLTAGE LIMITS | 250…470 V adjustable 323…437 V 380 V 340…460 V 400 V 353…477 V 415 V | |
| INPUTVOLT_OTHER | 380 V 415 V | |
| MAXIMUM INPUT CURRENT | 145 A | |
| SWITCHING CURRENT CAPACITY | 315 A | |
| MAX SHORT TIME WITHSTAND CURRENT | 30 kA | |
| INPUT HARMONIC DISTORTION | Less than 3 % for full load | |
| INPUT PROTECTION TYPE | 3-pole circuit breaker | |
| INPUT VOLTAGE | 400 V 3 phases | |
| INRUSH CURRENT | 200 A peak | |
| LOAD POWER FACTOR | 0.9 | |
| COS PHI | 1 |
| RATED POWER IN W | 90000 W | |
|---|---|---|
| MAXIMUM CONFIGURABLE POWER IN W | 90000 W | |
| HARMONIC DISTORTION | Less than 2 % | |
| OUTPUT FREQUENCY | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised | |
| OUTPUTVOLT_OTHER | 380 V 415 V | |
| CREST FACTOR | 3 : 1 | |
| UPS TYPE | Double conversion online | |
| WAVE TYPE | Sine wave | |
| OUTPUT CONNECTOR TYPE | Hard wire 4-wire (3P + E) 1 | |
| OUTPUT VOLTAGE TOLERANCE | +/- 2% static and 100% load step | |
| OUTPUT HARMONIC DISTORTION | < 1% linear load and < 2.5% non-linear load | |
| OUTPUT OVERLOAD OPERATION | 10 minutes at 125% and 60 seconds at 150% | |
| REQUIRED OUTPUT CURRENT PROTECTION | 80 A | |
| NEUTRAL OUTPUT CURRENT | 145 A | |
| BYPASS TYPE | Built-in maintenance bypass Built-in static bypass Optional external bypass | |
| CURVE EQUATION | Efficiency | |
| CURVE LOAD MAXIMUM | 100 % | |
| CURVE X-AXIS MAXIMUM | 100 % | |
| CURVE X-AXIS MINIMUM | 0 % | |
| CURVE X-AXIS TITLE | Load | |
| CURVE X-AXIS UNITS | Percentage | |
| CURVE Y-AXIS MAXIMUM | 100 % | |
| CURVE Y-AXIS MINIMUM | 50 % | |
| CURVE Y-AXIS TITLE | Efficiency | |
| CURVE Y-AXIS UNITS | Percentage | |
| EFFICIENCY | 93.6 % (full load) 93.1 % (half load) | |
| GRAPH DISPLAY | 1 | |
| MAXIMUM OUTPUT CURRENT | 480 A | |
| OUTPUT VOLTAGE | 400 V 3 phases | |
| MAXIMUM CONFIGURABLE POWER IN VA | 100000 VA | |
| RATED POWER IN VA | 100000 VA |
| PRODUCT CERTIFICATIONS | CE TÜV VDE | |
|---|---|---|
| STANDARDS | IEC 62040-1-2 EN/IEC 62040-2 EN/IEC 62040-3 ISO 9001 |
| AMBIENT AIR TEMPERATURE FOR OPERATION | 0…40 °C | |
|---|---|---|
| RELATIVE HUMIDITY | 0…95 % | |
| OPERATING ALTITUDE | 0…3333 ft | |
| AMBIENT AIR TEMPERATURE FOR STORAGE | -20…45 °C | |
| STORAGE RELATIVE HUMIDITY | 0…95 % | |
| STORAGE ALTITUDE | 0.00…12192.00 m | |
| ACOUSTIC LEVEL | 61.4 dBA | |
| HEAT DISSIPATION | 23549 Btu/h | |
| SHOW NOTE OP TEMPERATURE | No | |
| IP DEGREE OF PROTECTION | IP20 |
| BATTERY TYPE | External battery system | |
|---|---|---|
| NUMBER OF BATTERY FILLED SLOTS | 0 | |
| NUMBER OF BATTERY FREE SLOTS | 0 | |
| BATTERY RECHARGE TIME | 10 h | |
| ADDITIONAL INFORMATION | Battery runtimes are estimates only. Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage | |
| LIQUID VALUE | 0 | |
| BATTERY VOLTAGE | 432 V | |
| BATTERY CURVE | B | |
| BATTERY POWER IN VAH | 0 VAh runtime | |
| BATTERY LIFE | 8…10 year(s) | |
| BATTERY OPTION | G55TBATL7A 1 28000 VAh G55TBATL10B 1 38000 VAh G55TBATL7L10E 1 77500 VAh | |
| BATTERY GRAPH COMMENTS | Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output. | |
| EXTENDED RUNTIME | 0 |
